Milescraft EuroHingeJig

(No reviews yet) Write a Review
SKU:
WS13420
MPN:
1342
Shipping:
Calculated at Checkout
  • Milescraft EuroHingeJig
  • Milescraft EuroHingeJig
  • Milescraft EuroHingeJig
  • Milescraft EuroHingeJig
  • Milescraft EuroHingeJig
  • Milescraft EuroHingeJig
$24.99

Description

Concealed Hinge Jig Makes Cabinet Door Installation Easy

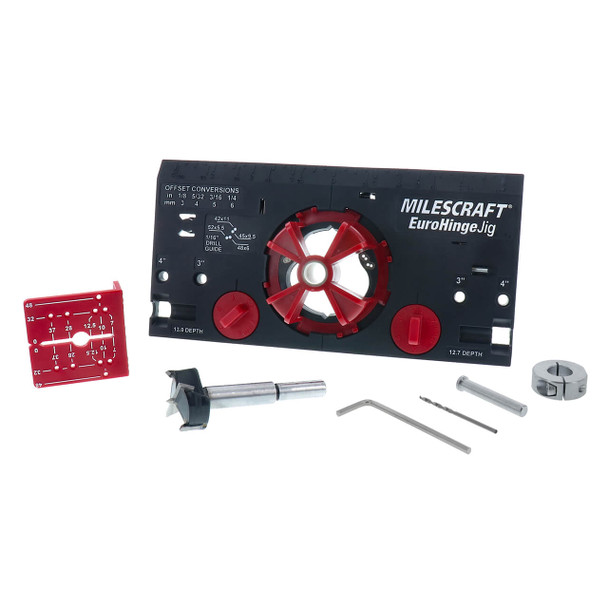

The Milescraft EuroHingeJig™ takes the guesswork out of installing European-style concealed hinges. The self-aligning jig works with frameless and face frame cabinets and has settings for all of the most popular hinge styles and cup locations. It even has a feature to help position and mount your door to the cabinet.

EuroHingeJig™ Features

  • Two edge alignment knobs position the cup hole from the edge of the door, while the edge locator pin sets the distance from the top/bottom
  • The drill guide with metal bushing locks into the jig and creates a perfectly straight hinge cup hole
  • Guide bushings built into the body of the jig let you pre-drill pilot holes in four common locations, making sure hinges are straight and the door closes true
  • Easily set your cup hole depth on the included 35mm high-speed steel bit using the built-in depth setting fixtures
  • The hinge marking guide detaches from the bottom of the jig and allows you to transfer and mark centerlines and hinge location to cabinet wall or frame

Specifications

Edge Offsets 2.5mm, 3mm, 4mm, 5mm, 6mm, 7mm
Locator Pin Offsets 3", 4"
Drill Bit 35mm EuroHinge Boring Bit
Shank 3/8" Round
Depth Stop 3/8" Split
Depth Settings 12.7mm, 13mm
Includes Hinge Marking Guide, 1/16" Pilot bit , 3mm Allen Wrench
