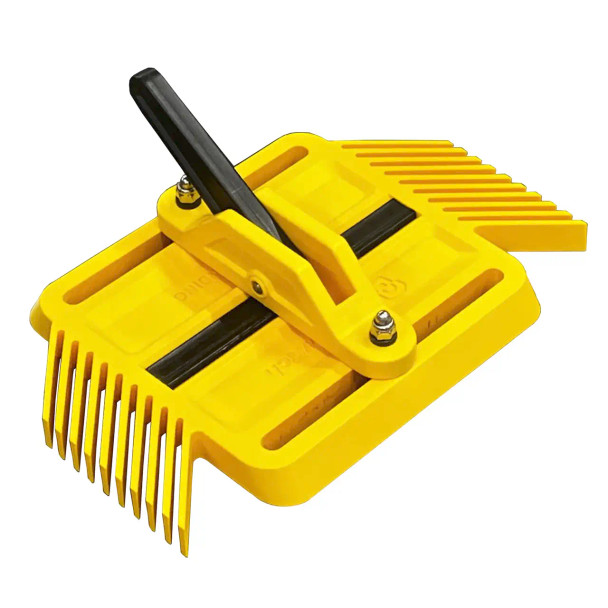

Magswitch SAVR Featherboard

Universal Feather Board That Can Attach to Any Table Saw!

Featherboard that works on either side of a tablesaw fence, and attached quickly to the miter slot by a locking camThe SavR Featherboard brings the speed of our featherboards to compact saws with aluminum tops. It works with the miter slot, but unlike other slow-to-set-up miter slot featherboards that require screwing down two knobs, the SavR Featherboard locks in place with the simple flip of a single switch. It comes configured for a 3/4” miter slot, but removing a slot spacer makes it compatible with a 5/8” slot.

Features:

• Provides strong featherboard force against the table saw fence in either left-handed or right-handed positions
• Compressible gaskets provide excellent grip when the cam is engaged
• Quick locking
• Single cam
• Removable spacer to change size
• Easy and fast

Specifications

• Net Weight: 1.1 lbs / 0.5 kg
• Overall Height: 4.37 in / 98.92 mm
• Overall Width: 6.8 in / 250.37 mm
• Overall Length: 9.85 in / 181.14 mm

User Instructions

• If the miter slots are 5/8” remove the supplementary spacer on the miter slot track.
• Adjust 2 nuts on either side of the feather board clamping arm so that the clamping lever expands the miter slot track to a secure fit with the miter slot when the clamping lever is pushed fully forward.
• Position the fence for a cut, set the featherboard’s miter slot track in the miter slot, and position the featherboard so that the feathers will bend roughly 1/8” when the workpiece passes by them.
• Push the clamping lever fully forward and check to make sure the featherboard is secure and will not slide forward or to the side.
• Complete the cut and remove the featherboard or adjust for the next cut.
