Microjig MatchFit CNC Workholding Kit

MATCHFIT CNC Workholding Kit

A complete system for quickly and securely holding work on CNC machines without interference.

Clamp Smarter.

Experience the unmatched innovation of the MatchFit CNC Workholding Kit, where the ingenious low-profile design elevates your woodworking without getting in the way of your tools. It is the only clamping system that uses the MatchFit Dovetail System to securely hold stock while you work the top on your CNC, clamping table, jig, or fixture.

Virtually all CNC machines sold come with two simple hold-down clamps if any clamps at all, leaving you to figure out how to hold parts on your own. No more double-faced tape. Microjig gives you a comprehensive system for quickly and securely holding work on your CNC, whatever cuts you need to make.

Professional level workholding.

When work needs to be done across the part surface, it must be held by the edges to prevent damage to the clamps and bits. Clamps holding stock from the top is the most common holding method, and our system engages the work top and edge to prevent movement during heavy milling.

Microjig’s CNC Workholding kit uses our MatchFit Dovetail Hardware in the spoilboard we teach you how to make to fit your machine bed. This allows most setups to be done quickly with no tools.

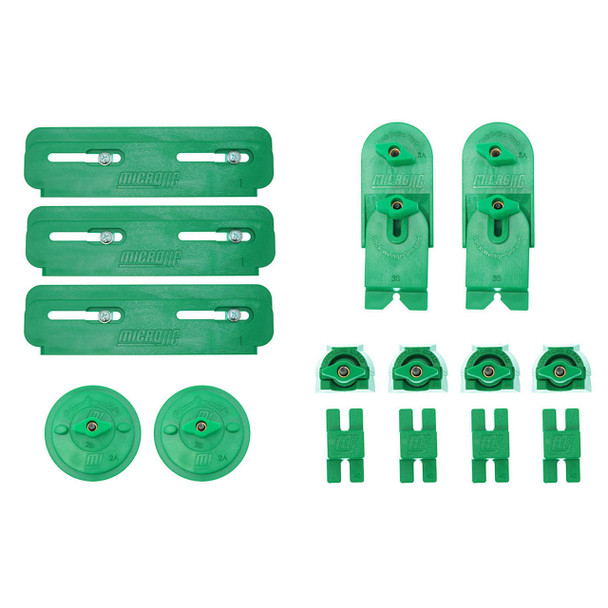

Included in the box:

• (3) Edge Guide
• (2) Ring Clamp
• (2) Ramp Clamp
• (4) U-Pad Clamp
• Nylon mounting hardware
• FREE Spoilboard plans

Workholding without limits.

Create your own tracks: With MatchFit, you're not confined to pre-set clamp positions. Carve out your custom dovetail tracks on any wooden surface, enhancing your hold-down capabilities where you need them most. The Dovetail Track System gives you all the functionality of T-track, in less time and at a fraction of the cost.

Seamless dovetail integration: All MatchFit clamps slide into any 1/2" x 14º dovetail groove, transforming your setup into a unified clamping haven for unmatched efficiency.

Works with all your MatchFit Dovetail sleds, jigs, and clamp tables.

Edge Guides

Edge Guides locate along your spoilboard to provide an accurate, low-profile origin point for easy setups, especially when repeating programs. They can also be aligned within any MatchFit Dovetail Groove.

Ring Clamps

Ring Clamps can be placed anywhere along your work table to lock and unlock your parts with just a twist of the wrist. Ring Clamps feature a unique fixed hub to eliminate loosening when in use.

Ramp Clamps

Ramp Clamps use ramps to hold parts applying force in and down to prevent movement and lifting. They feature a clamping edge that moves forward and down along a ramp to provide clamping force in two directions

U-Pad Clamps

Patent-pending U-Pads apply pressure on the top and sides at the same time, preventing both lifting and sliding. U-Pad Clamps provide superior hold for stock up to 1-1/8” (28 mm) thick.

Features:

• Provides multiple secure clamping options for virtually all benchtop CNC needs.
• Works with most sizes, models, and brands of benchtop CNC machines.
• No tools required for most set ups.
• Hold parts along the edges, leaving the top of the part free for machining.
• Secure parts from the top when working inside a larger blank.
