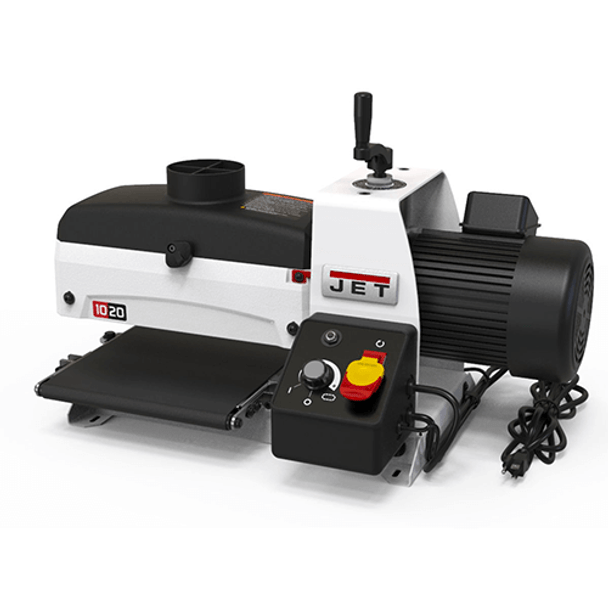

Jet JWDS-1020 Benchtop Drum Sander

The compact JWDS-1020 benchtop sander from JET packs a powerful 1HP motor that will sand boards up to 3" thick and 20" wide. The innovative patented dust hood ensures dust is funneled to the 4 inch dust port that easily connects to a Dust Collector. Adjusting the table back to parallel is convenient with just the turn of a dial. The self-cooling extruded aluminum sanding drum protects the sanding surface from heat damage, preventing waste.

Features

• Heavy duty die-cast aluminum and steel body provides rigidity for consistent quality
• Patented dust hood incorporates an integrated channel that directs dust to a 4" collection port
• Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position
• Infinitely variable-speed control allows the user to choose the optimal feed rate
• Open ended design allows for up to 20" of sanding capacity with 2 passes
• Extruded aluminum drum is designed to dissipate heat and protect wood from heat-damage
• Redesigned conveyor system pulls the workpiece through the sander instead of pushing
• Toolless abrasive take-up fasteners make changing abrasives quick and easy
• Precision-flattened reinforced steel conveyor bed supports the boards passing under the sanding drum
• Control system with integrated circuit breaker protects motor from over heating

Specifications

• Style (Type): Benchtop
• Drum length: 10"
• Number of sanding drums: 1
• Drum speed (RPM): 1725
• Drum diameter: 5"
• Conveyor motor: Totally enclosed DC
• Conveyor speed (FPM): 0 to 10
• Maximum board thickness: 3"
• Maximum board width: 20"
• Minimum board length: 2-1/4"
• Minimum board thickness: 1/32"
• Dust collection minimum CFM required (CFM): 550
• Dust port outside diameter: 4"
• Motor power (HP): 1
• Motor phase (PH): 1
• Motor voltage (V): 115
• Prewired voltage (V): 115
