Description

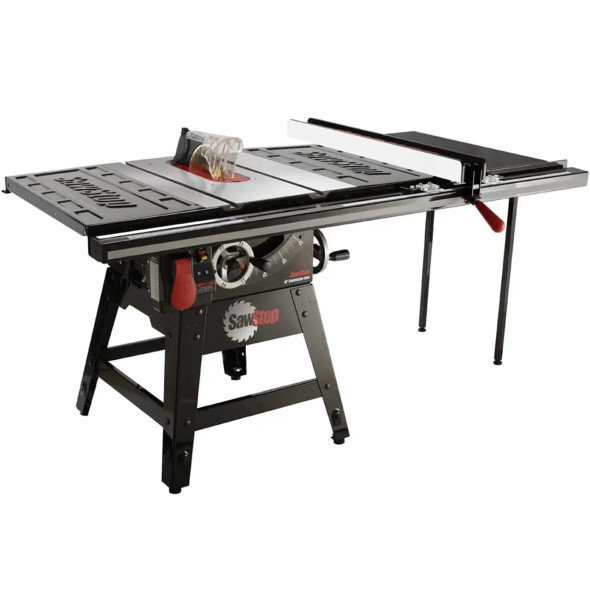

SAWSTOP 10-Inch Industrial Cabinet Saw, 5-HP, 36-Inch Industrial T-Glide Assembly. SAWSTOP PATENTED SAFETY SYSTEM: Stops a spinning blade in contact with the skin. The blade stops in less than 5 milliseconds and drops below the table, minimizing a potentially life-altering injury to a mere scratch
Specifications
Motor (all 60Hz, TEFC) | 3, 5, & 7.5HP available |
Cabinet Footprint | 20" W x 25" D |
Cast Iron Table | 24" W x 30" D |
Extension Wings | 10" W x 30" D |
Weight w/52 in. Fence Systems | 685 lbs. |
Shipping Weight (approx.) | 640 lbs. (table saw only) |
Blade Diameter | 10" |
Blade Tilt | Left |
Max. Depth of Cut, Blade at 0 deg. | 3 1/8" |
Max. Depth of Cut, Blade at 45 deg. | 2 1/4" |
Overall Saw Dimensions 36 in. | 69 1/4" W x 36 1/2" D x 34" H |
Overall Saw Dimensions 52 in. | 85 1/4" W x 36 1/2" D x 34" H |
Dust Collection Port Diameter | 4" |
RELIABILITY: The Control Box houses the on-off switch, power paddle, and on-board computer, and constantly checks that all systems are working to reliably keep you safe
36-INCH T-GLIDE FENCE ASSEMBLY: The 36-inch T-Glide Fence & Rail are made of heavy-gauge steel for sure lockdown and reliably square cutting for years without deflection
DUST COLLECTION: 99% dust collection is delivered above the table with the blade guard, and below the table with advanced shrouding. Available Overarm Dust Collection (Model # TSA-ODC, sold separately) routes dust away from the blade & into the 4” port
SawStop Industrial Cabinet Saw
A Safer Saw
The SawStop 10” Industrial Cabinet Saw is the reference by which all other saws are measured: Precision and heavy-duty construction, the revolutionary safety feature that’s made SawStop famous, and a 99% dust collection system that’s second-to-none. It is, simply put, the finest SawStop saw ever made. It is the heaviest, most powerful, and highest quality 10" cabinet saw available. The 3HP, 1ph, 230v configuration with a 36" Industrial T-Glide Fence Assembly offers the durability, versatility, and peace of mind only SawStop's patented safety system can provide.
The Risk
According to the Consumer Products Safety Commission, there is a table saw injury every 9 minutes, and 10 amputations every day in the United States. Even the most safety-conscious woodworkers are at risk of an accident. And when that accident happens, the consequences are life-changing: extreme pain and trauma, loss of income-earning abilities, and loss of the ability to pursue hobbies. It's time to protect yourself. SawStop saws have saved thousands of fingers.
