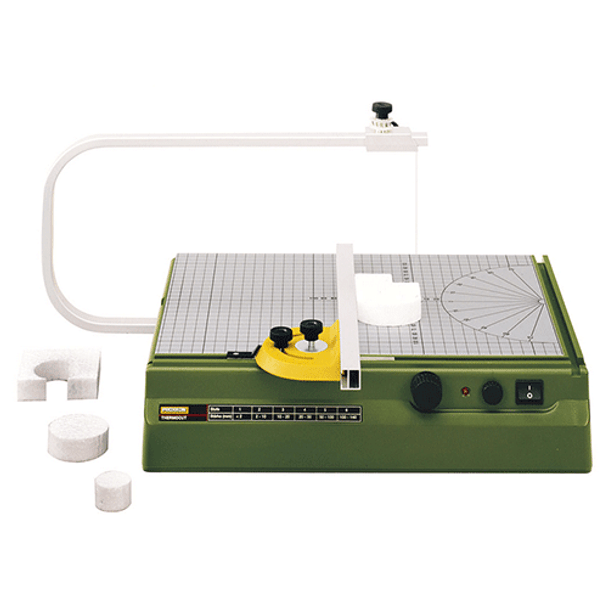

Proxxon Hot Wire Cutter Thermocut

The large base with 15.4" X 11" table ensures smooth and easy movement of the workpiece. The printed grid and protractor assist with division and cutting. Solid aluminum overarm has a 13.8" throat and offers 5.5" om height. The holder and wire coil (98 ft., .008" diameter is included) may be shifted along the overarm to enabel miter cutting. A LED indicates operation and helps prevent burned fingers (the wire heats to maximum in less than 1 second).

Specifications:

• Cutting wire temp. : 210-290 degrees
• Transformer secondary max.: 10V at 1.0A
• Volts: 110-120 V AC 60 Hz
• Weight: 105.8 oz

Note: The correct temperature, being material and thickness dependent, is learned from experience. Optimum profiles are cut at lower temperatures and cutting force.
