Kreg Pocket-Hole Jig 520PRO

• Versatile, adaptable jig for creating rock-solid pocket-hole joints anywhere you build with materials 1/2" to 1 1/2" thick
• Durable, impact-resistant construction with steel reinforced spine
• VersaGrip handle rotates 360° to suit any building set up and features built in clamping
• Includes 2" classic face clamp, free project plan, and 100 screws
• Simple setup with easy-set drill bit and pre-set material thickness settings
• GripMaxx™ anti-slip holds material in place to prevent shift while drilling

Build pocket-hole projects anytime, anywhere

The Pocket-Hole Jig 520PRO is the most versatile jig yet from Kreg®. It's the essential jig for project builders who need an easy-to-use joinery solution wherever you work - in the backyard, on the driveway, or even in a friend's garage.

This jig sets the standard for versatility in pocket-hole joinery. It's loaded with features, like the VersaGrip™ 360°-rotating handle that helps the 520PRO adapt easily to nearly any pocket hole project. VersaGrip™ also includes built-in clamping - just squeeze the handle until your material is clamped securely. With this flexible design, you'll never have to worry about struggling with large boards or sheets to add pocket holes in the right places. Instead, the 520PRO works in almost any orientation, so you can easily move the jig to any position, clamp it, and drill perfect pocket holes.

Preparing to drill pocket holes is easy. Preset material thickness settings on the drill guide block makes setup fast for 1/2", 3/4", and 1 1/2" material. Plus, the adjustable stop offers repeatability when you need to drill multiple pocket holes in pieces of similar thickness. A sturdy steel-reinforced spine and hardened steel drill guides ensure that the 520PRO will deliver years of quality project building performance.

With the Pocket-Hole Jig 520PRO, you get a 2" (51mm) face clamp, 100 Kreg pocket-hole screws, and a free project plan so you can start building right away.

The Pocket-Hole Jig 520PRO can even be transformed into benchtop jig by adding the Pocket-Hole Jig Clamp or Docking Station, sold separately.

Technical Specifications

• Features:
  Portable, compact/lightweight design
  VersaGrip™ handle featuring 360° rotation and built-in clamping
  Adjustable stop for repeatability
  GripMaxx™ anti-slip that holds material in place
  1/2", 3/4", 1-1/2" preset material thickness settings on drill guide block
  Drill chip ejection port
  Hardened steel drill guides
• Construction:
  Durable, impact resistant construction with steel reinforced spine
• Capacity:
  Materials from 1/2" to 1 1/2" thick (13-38mm)
• Compatibility:
  Kreg Pocket-Hole Screws
  Kreg Micro-Pocket™ Drill Guide Kit 530
  Easy-Set Drill Bit
  Kreg Docking Station
  Kreg Pocket-Hole Jig Clamp

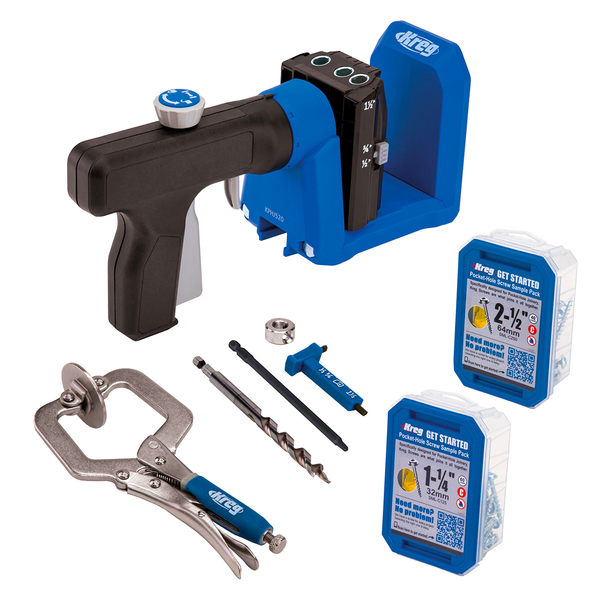

• Includes:
  Pocket-Hole Jig 520PRO
  Easy-Set Drill Bit
  6" #2 Driver Bit
  Easy-Set Stop Collar
  Hex Wrench
  1 Downloadable plan
  Kreg Classic 2" Face Clamp
  100 Kreg Pocket-Hole Screws
• Warranty:
  Lifetime drill-guide warranty

• Fast
  Set up is quick and easy with built-in clamping, so you can get to building
• Simple
  Intuitive features like the VersaGrip™ handle make pocket-hole joinery easier than ever
• Accurate
  Get the high-quality results your projects deserve - in material 1/2" to 1-1/2' thick
