Out of Stock - Pre-order today!

Domino Joiner Domino DF 500 Q-Set

(No reviews yet) Write a Review
SKU:
FS576423
UPC:
4014549355879
MPN:
576423
Shipping:
Calculated at Checkout
  • Domino Joiner Domino DF 500 Q-Set
  • Domino Joiner Domino DF 500 Q-Set
  • Domino Joiner Domino DF 500 Q-Set
  • Domino Joiner Domino DF 500 Q-Set
  • Domino Joiner Domino DF 500 Q-Set
  • Domino Joiner Domino DF 500 Q-Set
  • Domino Joiner Domino DF 500 Q-Set
  • Domino Joiner Domino DF 500 Q-Set
  • Domino Joiner Domino DF 500 Q-Set
  • Domino Joiner Domino DF 500 Q-Set
$1,199.00

Description

DOMINO Joiner DF 500 Q Set (including trim stop and cross stop) for fast, easy and strong mortise and tenon joining.

  • Mortise width adjustment with the turn of a dial allows for easier alignment when joining panels
  • Pivoting Fence allows you to create angled mortises from 0-90° with positive stops at 22.5°, 45°, 67.5°

Additional Details

  • Patented routing principle: The spiral cutter rotates and oscillates to create perfect mortises
  • Mortise Width Adjustment: Adjusting the width of the mortise allows for easier alignment when joining panels
  • Positioning: With an adjustable fence angle, retractable stop flaps, adjustable cutter height with step gauge, and precise mortise depth stop, the DOMINO joiner enables precise mortise placement and spacing
  • Pivoting fence: Fence creates angled mortises from 0-90° with positive stops at 22.5°, 45°, 67.5°
  • Depth Control: Quick, precise adjustment for five different mortising depths, relative to the size of the tenon required for the application
  • Stepped Height Stop: 7 different step positions for different material thicknesses for fast and easy fence height adjustment
  • Dust extraction: Your mortises are clean and ready for glue when the DOMINO is used in combination with a dust extractor. Proper dust extraction greatly extends cutter life.
  • Carbide Tip Spiral Bit: Durable, long-lasting bit withstands 5,000-14,000 joints depending on material
  • Rapid Bit Change: Means you can change a bit in under 30 seconds to match desired tenon size

Specifications

Max. routing depth 1-1/16" (28 mm)
Dust extraction connection dia. 1-1/16" (27 mm)
Weight 7.72 lbs (3.5 kg)
Routing height adjustment 1/8" (5 mm) - 1-3/16" (30 mm)

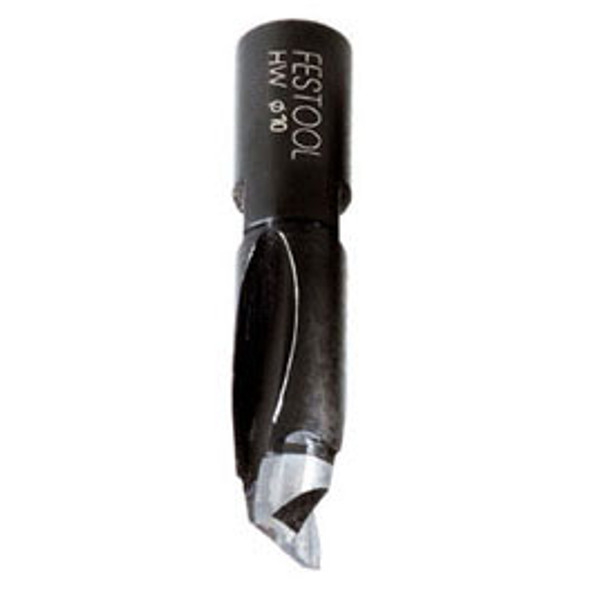

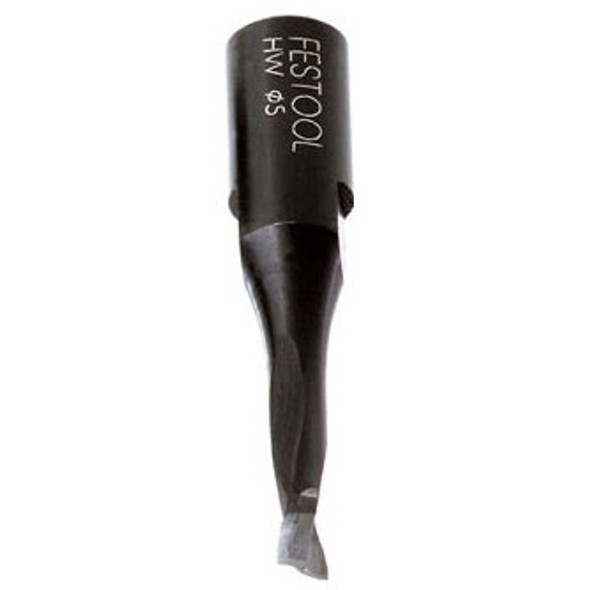

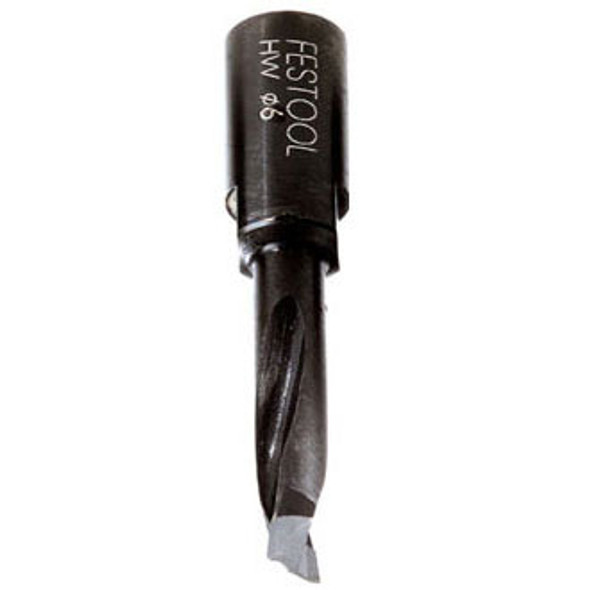

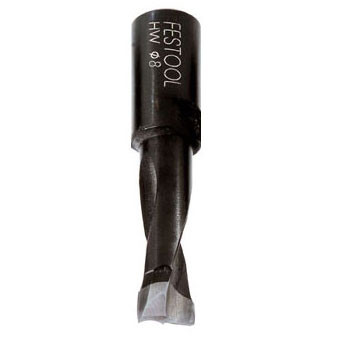

DOMINO slot cutter dia. 3/16" (4 mm)/1/8" (5 mm)/1/4" (6 mm)/5/16" (8 mm)/3/8" (10 mm)
Power consumption 420 watt
Depth stop for routing depth 12, 15, 20, 25, 28 mm
Cable length 13.123 ft (4 m)

Includes

  • DOMINO DF 500 7/32" (5 mm) cutter
  • Support Bracket
  • Trim Stop
  • Cross Stop
  • Open ended spanner, WAF 8
  • Systainer SYS3 M 187
