Description

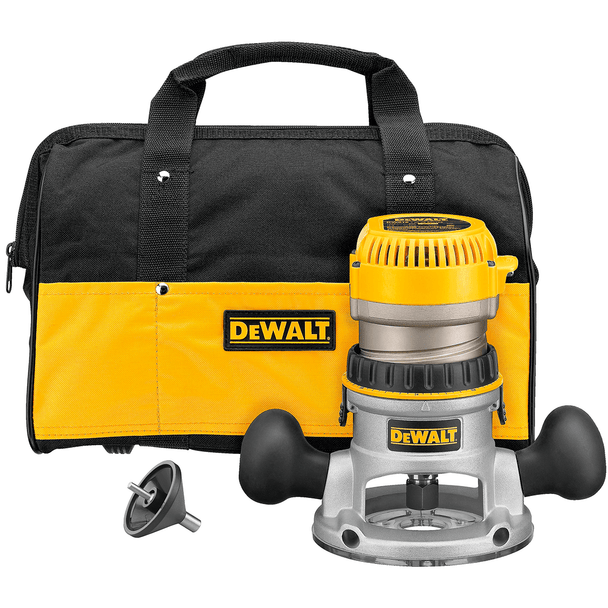

The DW616K 1-3/4 HP Fixed Base Router Kit has the power to rout smoothly through hardwoods. Provides quick and precise depth adjustments and fast, easy motor pack removal for bit and base changes.
Features
- 1-3/4 HP (maximum motor HP), 11.0 amp motor provides the power to rout smoothly through the toughest hardwoods
- Micro-fine depth adjustment ring provides precise depth adjustments in 1/64" increments and adjusts vertically for a constant switch/cordset location
- Adjustable, tool-free steel motor cam lock makes depth adjustment and base changes quick and solid-locking
- Quick release motor latches for fast and easy motor pack removal for bit and base changes
- Detachable cordset offers cordset serviceability and removes the need for a "shorty" cord motor pack
- Sub-base concentricity gauge included to ensure bit concentricity for best-in-class accuracy
- Clear, LEXAN sub-base provides enhanced base durability, bit visibility, and accepts standard template guide bushings
- Rubber overmolded handles and low center of gravity design provide best-in-class comfort, balance, and control
- Dust-Sealed Switch protects against dust ingestion for longer switch life
- Heavy-duty, precision machined, die-cast aluminum base and motor housing for durability and low tool weight
- Nickel plated motor housing for a smooth, long-lasting depth adjustment
- Right or left switch and cordset location provides the ability to have the switch in your right or left hand
- Flat top for easy bit and depth changesSelf-releasing, long, eight slotted collets for better bit retention and elimination of frozen bits
Specifications
- Amps: 11.0 amps
- Base dimension: 6"
- Collet diameter: 1/2", 1/4"
- Depth stop: Micro-fine depth adjustment ring
- No load speed: 24,500 rpm
- Peak horsepower: 1-3/4
- Plunge stroke: N/A
- Power tool type: Corded
- Router base: Fixed base
- Router type: Midsize router
- Spindle lock: No
- Tool weight: 7.1 lbs
Includes
- DW616M motor pack
- DW6184 fixed base
- 1/4" and 1/2" collets
- Sub-base concentricity gauge
- 2 wrenches
- Kit Box
