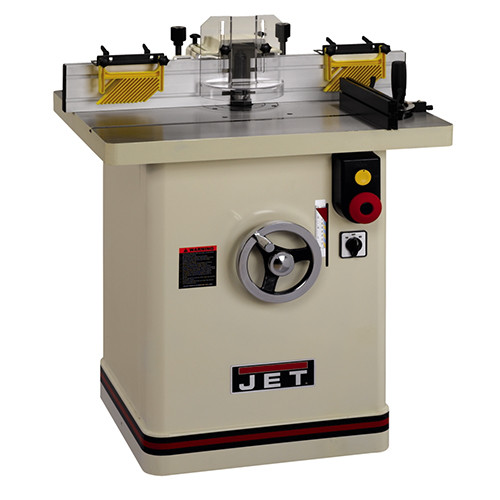

JET JWS-35X3-1 3HP 1PH Shaper

This new heavy-duty JET Shaper is available with a powerful 3HP, 1Ph motor with magnetic controls. The four-speed 4000, 6000, 8000, 10000 RPM step pulley drive with quick release lever allows you to select the best speed and torque for different cutter diameters. It comes standard with independently adjustable left and right fences, and a micro-adjust control for precise positioning.

Details:

• Four-speeds 4000, 6000, 8000, 10000 RPM let you select the best speed and torque for different cutter diameters
• Powerful 3HP, 1Ph motor with magnetic controls
• Independently adjustable left and right fences, standard with a micro adjust control for precise positioning
• Large 26-3/4" X 32-1/4" precision ground cast iron table provides a durable work area, predrilled for power feeder
• Poly-V-belt transfers maximum power to the spindle
• Starting Pins for irregular shaping
• Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
• Extra-large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
• Reversible spindle speeds for diverse shaping jobs
• 4" Dust port built into fence for convenient hookup to any dust collection system
• Spindle lock for safe and easy cutter set-up
• Spindle height scale

Specifications:

• Model #: JWS-35X3-1
• Brand: Jet
• Warranty: 5 Year
• Spindle Speed (RPM): 4000, 6000, 8000, 10000
• Reversable: Yes
• Spindle Diameter (in.): 1-1/4"
• Spindle Size Under Nut (in.): 4"
• Spindle Travel (in.): 4"
• Table Size (in.): 26-3/4" X 32-1/4"
• Table T-Slot : Yes
• Table Opening Diameter (in.): 7-1/4"
• Table Insert Opening Diameter (in.): 2-5/8", 4-7/8"
• Fence Size (L x H/in.): 4-3/4" X 16"
• Router Bit Collet Diameter (in.): 1/4", 1/2" (optional)
• Table Height From Floor (in.): 33-1/4"
• Electrical Controls - Magnetic Starter: Magnetic Starter
• Maximum Diameter Cutter Below Table (in.): 6"
• Maximum Diameter Cutter Above Table (in.): 7-1/2"
• Table Inserts: 2"
• Fence Travel (Major and Minor/in.): 4",1"
• Dust Port Diameter (OD/in.): 4"
• Dust Collection Minimum CFM Required: 400
• Motor HP: 3
• Motor Phase: 1
