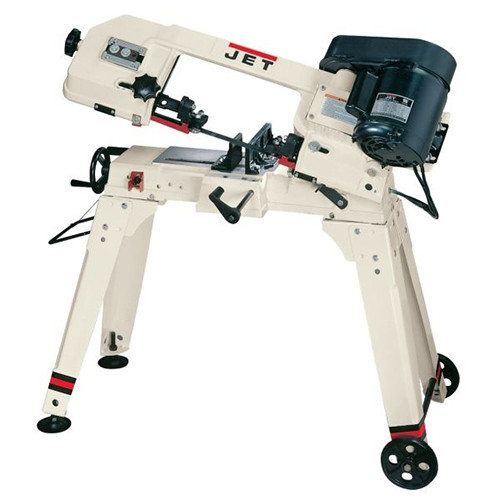

Horizontal / Vertical Bandsaw HVBS-56M

The JET HVBS-56M Metalworking Bandsaw is UL listed and powered by a 1/2 HP motor. 2 large diameter wheels and built in handle allow easy movement. Front legs ensure level and accurate cuts by featuring adjustable leveling pads. Each HVBS-56M comes equipped with a 1/2" carbon steel blade, adjustable material stop and vertical worktable. Worried about safety? Don't - the HVBS-56M shuts off automatically after each cut.

• UL Listed single phase motor
• Exclusive design heavy-duty 14-gauge stand
• Large diameter wheels and built-in handle allows easy movement
• Front legs feature adjustable leveling pads
• Ball bearing supported blade wheel
• Fully adjustable ball bearing blade guides
• Heat-treated and ground steel worm gear with bronze drive gear
• Three blade speeds to choose from
• Automatic shut-off after cut
• Standard Equipment:
  • Vertical worktable
  • 1/2" Carbon steel blade
  • Adjustable material stop
• 2 year warranty

Specifications:

• Model Number: HVBS-56M
• Brand: Jet
• Overall Dimensions: 19 x 44 x 57 (Vertical)
• Height: 15.7"
• Width: 14.2"
• Length: 39"
• Net Weight: 115 lbs
• Gross Weight: 121 lbs
• Motor: 1/2HP, 115/230V, 1Ph, Prewired 115V
• Round at 90 Degrees (in.): 5
• Round at 45 Degrees (in.): 3
• Rectangle at 90 Degrees (in.): 5(H) x 5-3/4(W) and 2(H) x 6(W)
• Blade Size (in.): 1/2 x .025 x 64-1/2
• Blade Speeds (SFPM): 80, 120, 200
• Bed Height (in.): 26
• Vertical Work Table Size (in.): 9-5/8 x 9-1/2
• Vise Swivels (deg.): 45°
• Blade Length (in.): 64-1/2
• Rectangle at 45 Degrees (in.): 4-1/2(H) x 3(W)
• Throat Depth (in.): 5
• Blade Wheel Diameter (in.): 7-3/8
