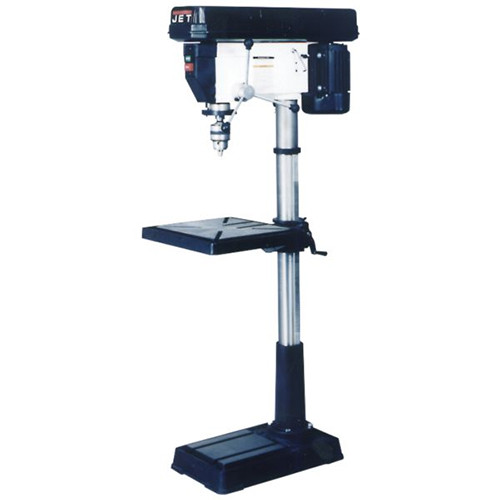

Jet 20" Floor Drill Press JDP-20MF

The JET JDP-20MF Floor Drill Press is powered by a 1-1/2 HP motor and is equipped with a built in work lamp, adjustable tension spindle return spring, and hinged metal belt and pully cover. With 12 speeds, the JDP-20MF can be used for any project you see fit.

• Hinged metal belt and pulley cover coupled with quick adjustment motor mount allow rapid changing of spindle speeds
• Rotating, 45° tilting, crank-operated worktable with quick release clamp On/off switch located on front of the drill press head
• A 1/2" diameter external positive depth stop with three nut locking feature for quick adjustment
• Adjustable tension spindle return spring
• Spindle is supported by high quality ball bearings
• Built-in work lamp on all models, bulb not included
• Drill chuck and key included
• 2 year warranty

Specifications:

• Model Number: JDP-20MF
• Brand: Jet
• Overall Dimensions: 33 x 19 x 67
• Height: 12.9"
• Width: 26.5"
• Length: 58"
• Net Weight: 282 lbs
• Gross Weight: 325 lbs
• Motor: 1-1/2HP, 1Ph , 115/230V, Prewired 115V
• Number of Spindle speeds: 12
• Range of Spindle Speeds (RPM): 150-4,200
• Spindle Taper: MT-3
• Quill Diameter (in.): 2.44
• Max Distance Spindle to Table ( in.): 29-1/8
• T-Slots Number and Size (in.): 6 x 1/2
• T-Slot Centers (in.): 3-1/2
• Work Table Weight Capacity (lbs.): 80
• Column Diameter (in.): 3-3/8
• Base Dimensions (LxWxH/ in.): 13-3/4 x 22-3/4
• Drilling Capacity Cast Iron (in.): 1
• Drilling Capacity Mild Steel (in.): 3/4
• Quill Travel (in.): 4-5/8
• Table Size (in.): 18-1/2 x 16
• Chuck Size (in.): 3/4
• Drills to Center of Circle (in): 20-1/2
• Spindle Distance to Base (in.): 46-3/4
• Base Work Table (in.): 13 x 8-1/2
• Base Slots Number & Size (in.): 2 x 5/8
