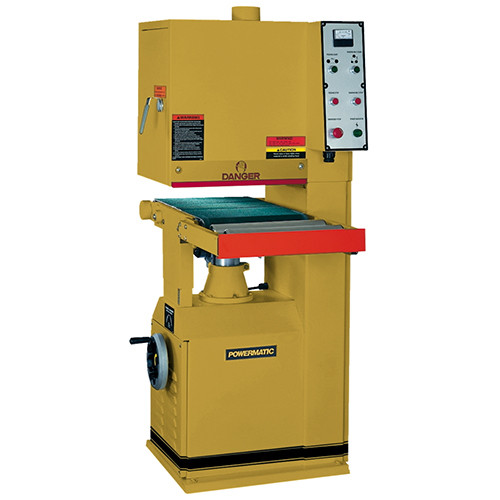

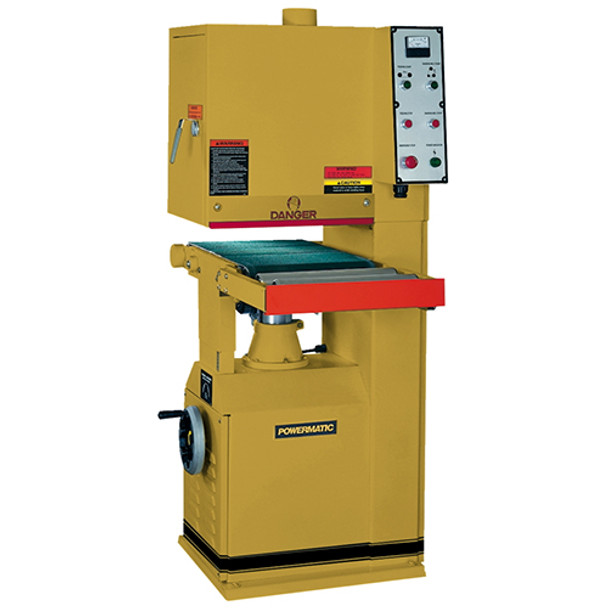

Powermatic Open End 1632 Belt Sander

The 16" Open-End Sander has front mounted controls and a load meter, which maintains a constant check during operation. Metal-tipped safety limiters inside the machine will stop the sander immediately should belt breakage occur. The combination head means a more consistent finish, and pneumatic conveyor belt tracking keeps belts automatically centered.

Details:

• The combination head promotes a more consistent finish
• Pneumatic conveyor belt tracking keeps belt centered
• Conveniently mounted load meter maintains constant check during operation
• Limiters will stop sander instantly if belt breakage occurs
• Side access door for easy belt changes

Standard Equipment:

• 5HP motor
• Emergency rail stop
• Emergency stop button
• Dust collection port
• 17" x 54" sanding belt

Specifications:

• Part Number: 1791250
• Warranty: 1 year
• Working Width (Reversing Stock): 16 (32)"
• Working Thickness: 5"
• Minimum Board Length: 13-3/4"
• Head Configuration: Combination
• DRO: n.a.
• Belt Speed: 2200 sfpm
• Belt Size: 17 x 54"
• Compressed Air Requirements @ 5 atm: 75 psi
• Dust Port Outside Diameter: 4"
• Dust Collection Minimum CFM Required: 800 cu.ft/min
• Motor Power: 5 HP
• Motor Voltage: 230 V
• Motor Phase: 1 Ph
• Feed Motor Power: 1/4 HP
• Feed Motor Phase: 1 Ph
• Web Description: 1632 Open End Belt Sander, 5HP 1PH 230V
• Model Number: 1632
• Brand: Powermatic
• Overall Dimensions: 40 x 29 x 66
• Height: 66 inch
• Width: 29 inch
• Length: 40 inch
• Net Weight: 996 pound
