Description

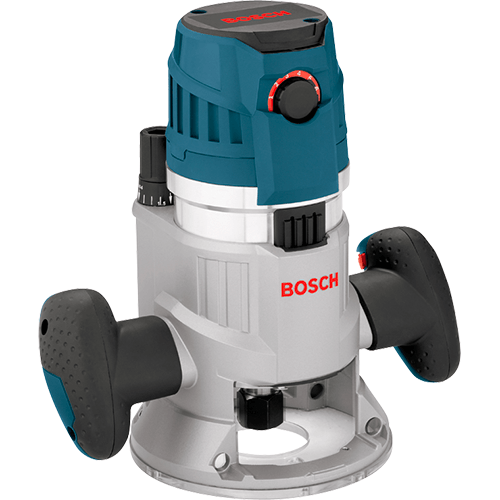

The Bosch MRF23EVS 2.3 HP Electronic Fixed-Base Router delivers optimum user control, with the trigger-controlled power system that features a power switch in the fixed-base handle. This router has the power to get results, with its 15-amp motor and adjustable speed settings. The variable-speed dial allows the operator to set the optimal speed. The Bosch Constant Response_ circuitry in the motor maintains a constant speed throughout the cut, resulting in clean, accurate product. The router has microfine bit-depth adjustment, with a continuous depth range of 1-5/8 in., allowing for accurate and fast changes, while its precision-centering design allows the bit to be centered with the sub-base or optional template guides. Users can glide along the intended cutline using dovetail fixtures, templates, jigs and other guidance devices.
Includes
Fixed Base
1/4" Self-Releasing Collet Chuck
1/2" Self-Releasing Collet Chuck
16mm Shaft Wrench
24mm Collet Nut Wrench
T-Handle Hex Height Adjustment Wrench
Pack of 3 M4 Screws for table mounting
Benefits
Trigger-control system - trigger power switch located in handle for enhanced control
Powerful 15-amp motor - produces 10,000 to 25,000 rpm and 2.3 horsepower
Precision-centering design - makes it easy to keep bit on cutline
Versatile fixed-base depth adjustment - features 1-5/8 In. continuous microfine adjustment range
Above-table depth adjustment when fixed base is installed in router table
Constant Response™ circuitry - maintains constant speed under load
Always-on LED lighting - for enhanced visibility in bit area
Soft-start function - reduces start-up torque
Two-stage quick clamp system - for fast tool-free conversion
Variable-speed dial - for matching speed to workpiece and task
Contoured soft grip handles - for enhanced control and comfort
Fixed base has threaded holes for mounting to router table positioned in common three-hole pattern
Cord swivel - for added mobility
Compatible with optional RA1129 Template Guide Adapter Set - for easy change of Bosch quick-release template guides and common threaded template guides; includes RA1126 Template Guide Adapter and RA1100 Interface for Threaded Template Guides (both also available in the RA1128 Template Guide Set)
Works with
Router Tables- RA1171 Cabinet-Style Router Table, RA1181 Router Table, RA1152 Offset Bit-Change Wrench Set
Router Guide RA1054
Template Guides - RA1128 Template Guide Set, RA1129 Template Guide Adapter Set
Centering Device for Subbases and Attached Template Guides RA1151
Dust Collection Attachments- RA1175 Edge-forming Dust Hood, RA1176AT Two-Hood Dust Hood Set
Plunge Base MRP01
Specifications
Amperage: | 15 |
Base diameter: | 6" Fixed |
Base opening: | 3-3/4" |
Case type: | No case included |
Collet capacity: | 1/2" and 1/4" |
Dust collection: | No |
Fixed base depth range: | 1-5/8" |
Length: | 6" |
No load RPM: | 10,000 - 25,000 |
Rating: | 120V AC |
Subbase opening: | 2" |
Voltage: | 120V |
Weight: | 9.3lb |
Width: | 10.25" |
