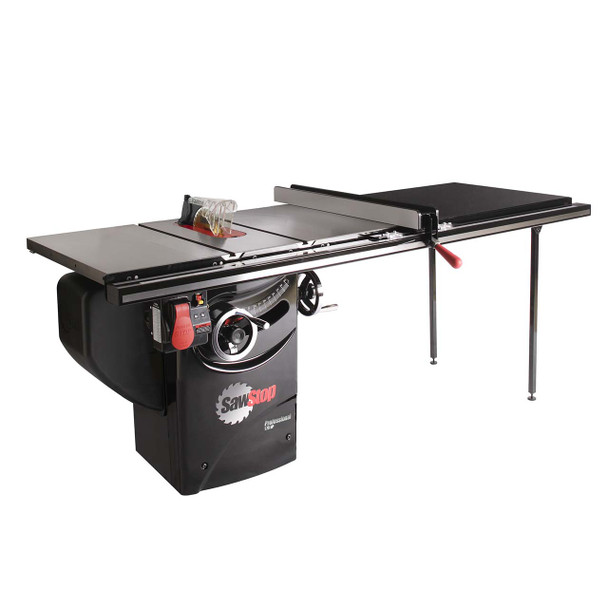

Sawstop Professional Cabinet Saw, 52" T-Glide Fence, 1.75HP, Single Phase
- SKU:
- SP75252
- MPN:
- PCS175-TGP252
- Shipping:
- $325.00 (Fixed Shipping Cost)
Description
The SawStop® 1.75HP Professional Cabinet Saw with 52" Professional T-Glide Fence System offers versatility and safety. It delivers the performance you need with the peace of mind only SawStop's patented safety system can provide.
Specifications
| Length | 85-1/4" |
| Width | 31-1/8" |
| Height | 34" |
| Weight | 449 lbs |
| Motor (60Hz TEFC) | 1.75 HP, 120v, 14 A |
| Cabinet Footprint | 19 3/8″ W x 19 3/8″ D |
| Cast Iron Table | 20″ W x 27″ D |
| Extension Wings | 12" W x 27" D each |
| Extension Table | 12" W x 27" D |
| Ship. Dimensions (body only) | 43" W x 31" D x 30" H |
| Blade Diameter | 10" |
| Blade Tilt | Left |
| Max. Rip Right of Blade | 52" (w/ 52" rails) Dado Blade Diameter: 8" |
| Dado Max. Width | 13/16" |
| Arbor Diameter at Blade | 5/8" |
| Miter Slots T-Shaped | 3/4" at top, 1" at bottom, 3/8" deep |
| Dust Collection Port Diameter | 4" |
- 85-1/4" W, 33" D, 34" H
- Unmatched fit and finish with a keen attention to detail
- SawStop Safety System stops on contact with skin
- 52" Professional T-Glide Fence System provides smooth operation, an expansive work surface, precision measurement and sure lockdown without deflection
- PCS compatibility
- 2 Year warranty
52-INCH T-GLIDE FENCE ASSEMBLY: The 52-inch T-Glide Fence & Rail are made of heavy-gauge steel for sure lockdown and reliably square cutting for years without deflection.
SAWSTOP PATENTED SAFETY SYSTEM: Stops a spinning blade in contact with the skin. The blade stops in less than 5 milliseconds and drops below the table, minimizing a potentially life-altering injury to a mere scratch.
UNMATCHED QUALITY: The trunnion and arbor are built for precision, strength, and stability. The gas piston elevation delivers smooth and easy adjustability. Table flatness is measured diagonally at a 0.010” maximum gap.
DUST COLLECTION: 99% of dust collection is delivered above the table with the available dust collection blade guard (Model # TSG-DC, sold separately), and below the table with advanced shrouding around the blade. Available Overarm Dust Collection (Model # TSA-ODC, sold separately) routes dust away from the blade and into the 4” port.
RELIABILITY: The Control Box houses the on-off switch, power paddle, and on-board computer, and constantly checks that all systems are working to reliably keep you safe.
SawStop Professional Cabinet Saw
A Safer Saw
The 1.75 HP Professional Cabinet Saw and 52" Prof. T-Glide Fence System, SawStop dedicated countless engineering hours to ensuring nothing was missed. From true vertical elevation, to smooth repeatable cutting, and the T-Glide Fence, everything has been designed to deliver repeatable excellence. Delivering the performance you need with the peace of mind only SawStop's safety system can provide.
The Risk
According to the Consumer Products Safety Commission, there is a table saw injury every 9 minutes in the United States that results in 10 amputations every day. Even the most safety-conscious woodworkers are at risk of an accident. And when that accident happens, the consequences are life-changing: extreme pain and trauma, loss of income-earning abilities, and loss of the ability to pursue hobbies. It's time to protect yourself.
Saw Includes: *Fence System assembly w/ Rails & Table *Blade Guard *Cast Iron Table & Wings *Riving Knife *Tool Free Zero Clearance Insert *Standard 10" Brake Cartridge *40 TPI Carbide Blade Accessories: SP80010 STANDARD BRAKE CARTRIDGE 10" SP80011 DADO BRAKE CARTRIDGE 8" SP60004 ZERO CLEARANCE INSERT 10" SP60005 ZERO CLEARANCE INSERT 8" SP90027 OVERARM DUST COLLECTION SP90024 DUST COLLECTION BLADE GUARD SP60006 30" OUT-FEED TABLE SP60002 INTEGRATED MOBILE BASE SP60009 INDUSTRIAL MOBILE BASE rail 64lbs 220V re wire kit PCS-WA-025
