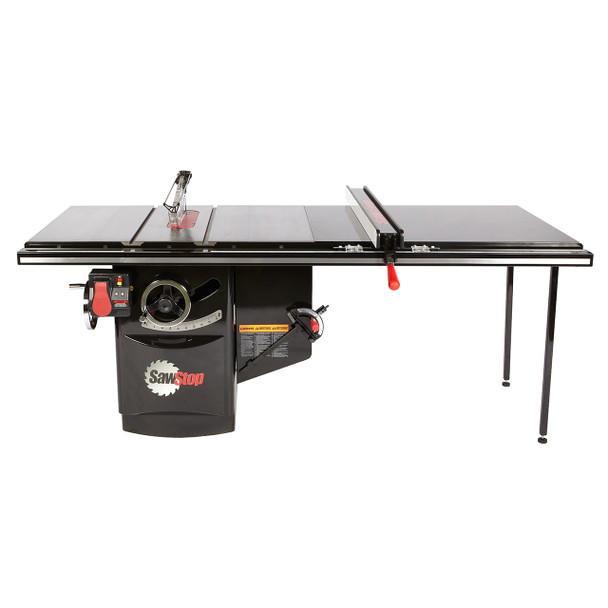

Sawstop ICS 52" 3Hp 1Ph 230v

SAWSTOP 10-Inch Industrial Cabinet Saw, 3-HP, 52-Inch Industrial T-Glide Assembly

SAWSTOP PATENTED SAFETY SYSTEM: Stops a spinning blade in contact with skin. The blade stops in less than 5 milliseconds and drops below the table, minimizing a potentially life-altering injury to a mere scratch

RELIABILITY: The Control Box houses the on-off switch, power paddle, and on-board computer, and constantly checks that all systems are working to keep you safe reliably

52-INCH T-GLIDE FENCE ASSEMBLY: The 52-inch T-Glide Fence & Rail are made of heavy-gauge steel for sure lockdown and reliably square cutting for years without deflection

DUST COLLECTION: 99% dust collection is delivered above the table with the blade guard, and below the table with advanced shrouding. Available Overarm Dust Collection (Model # TSA-ODC, sold separately) routes dust away from the blade & into the 4” port

A Safer Saw

The SawStop 10” Industrial Cabinet Saw is the reference by which all other saws are measured: Precision and heavy-duty construction, the revolutionary safety feature that’s made SawStop famous, and 99% dust collection system that’s second-to-none. It is, simply put, the finest SawStop saw ever made. It is the heaviest, most powerful, and highest quality 10" cabinet saw available. The 3HP, 1ph, 230v configuration with a 52" Industrial T-Glide Fence Assembly offers the durability, versatility, and peace of mind only SawStop's patented safety system can provide.

The Risk

According to the Consumer Products Safety Commission, there is a table saw injury every 9 minutes, and 10 amputations every day in the United States. Even the most safety-conscious woodworkers are at risk of an accident. And when that accident happens, the consequences are life-changing: extreme pain and trauma, loss of income-earning abilities, and loss of the ability to pursue hobbies. It's time to protect yourself. SawStop saws have saved thousands of fingers.

Specs

• Motor (all 60Hz, TEFC): 3, 5, & 7.5HP available
• Cabinet Footprint: 20" W x 25" D
• Cast Iron Table: 24" W x 30" D
• Extension Wings: 10" W x 30" D
• Weight w/52 in. Fence Systems: 685 lbs.
• Shipping Weight (approx.): 640 lbs. (table saw only)
• Blade Diameter: 10"
• Blade Tilt: Left
• Max. Depth of Cut, Blade at 0 deg.: 3 1/8"
• Max. Depth of Cut, Blade at 45 deg.: 2 1/4"
• Overall Saw Dimensions 36 in.: 69 1/4" W x 36 1/2" D x 34" H
• Overall Saw Dimensions 52 in.: 85 1/4" W x 36 1/2" D x 34" H
• Dust Collection Port Diameter: 4"

Saw includes:

230V *Industrial T-Glide Fence System assem- bly w/ Rails & Table *Cast Iron Table & Wings *Riving Knife *Dust Collection Blade Guard *Tool Free Zero Clearance Insert *Standard 10" Brake Cartridge *60 TPI Carbide Blade Accessories: SP80010 STANDARD BRAKE CARTRIDGE 10" SP80011 DADO BRAKE CARTRIDGE 8" SP60004 ZERO CLEARANCE INSERT 10" SP60005 ZERO CLEARANCE INSERT 8" SP90027 OVERARM DUST COLLECTION SP90014 SAWSTOP MOBILE BASE rail 64lbs
