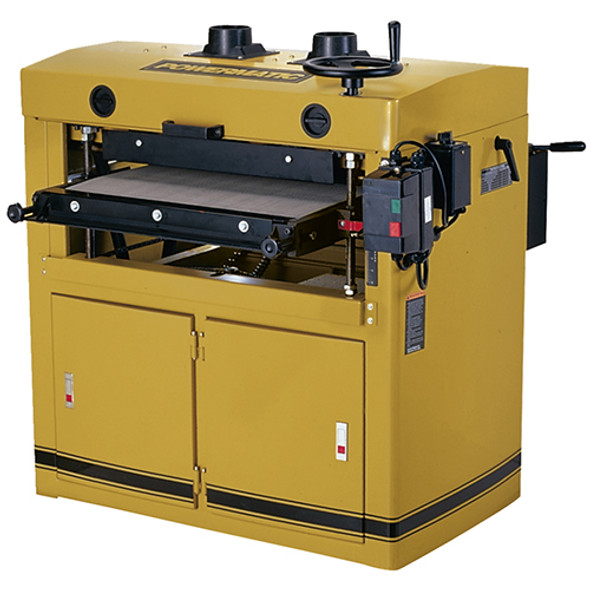

3760 Wide Belt Sander 10HP 1PH

Enjoy the benefits of a serious wide belt sander with features found on much larger sanders all packed into a lower cost machine.

10 Hp, Single Phase (1~), 220 Volt

Wide Belt Sanders solve the most tedious challenge that woodworkers face! Our American Made 3760 Wide Belt Sander will improve your finishing time, decrease your hand sanding and increase your productivity. Available with either a 10 horsepower, single phase or a 15 horsepower, three phase motor these American made wide belt sanders are workhorses that will likely outlive you.

Standard Equipment

• Photo electric belt tracking
• 2-1/2" removable platen
• 2 height adjustment indicators
• 5 emergency stops
• 2 rubber-covered pinch rollers 1 1/2" OD
• Rubber-covered contact roller 4 1/4" OD with 13/8" drive bearing
• 2 machined idler rollers 2-3/16" OD with 3/4" bearings
• Conveyor table set on four 3/4" acme-threaded jackscrews
• Pneumatic belt tensioning
• 3 year warranty
• 6" internal dust chute
• 3/4 Hp conveyor motor

Additional Information

• Weight: 1789 lbs
• Dimensions: 60" x 60" x 71"
• Max. working length: Unlimited
• Min. working length: 12"/305mm
• Main motor: 10 Hp, Single Phase (1~), 220 Volt
• Max. working width: 36"/915mm
• Max. working thickness: 7-1/4"/184mm
• Min. working thickness: 1/8"/3mm
• Vacuum requirement: 1000 CFM
• Conveyor speed: 0-18 FPM
• Durometer of contact roller: 60
• Sanding belt size: 37" x 60"
