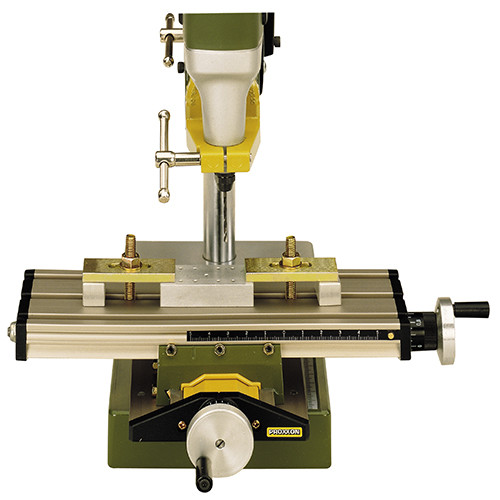

Proxxon Micro Compound Table

Made of surfaced treated solid aluminum and fitted with adjustable dovetail slides and three T slots to the MICROMOT standard. Adjustable scale eases workpiece positioning. Both handwheels have zero-resettable dials with graduations indicating 1 revolution = 1.0 mm and 1 division = .05 mm. The clamps and securing bolts for the MB140/s and TBM are included.

Specifications:

• Table size: 7.9" x 2.75"
• X travel: 5.25"
• Y travel: 1.8"
• Maximum height: 1.7"
