Description

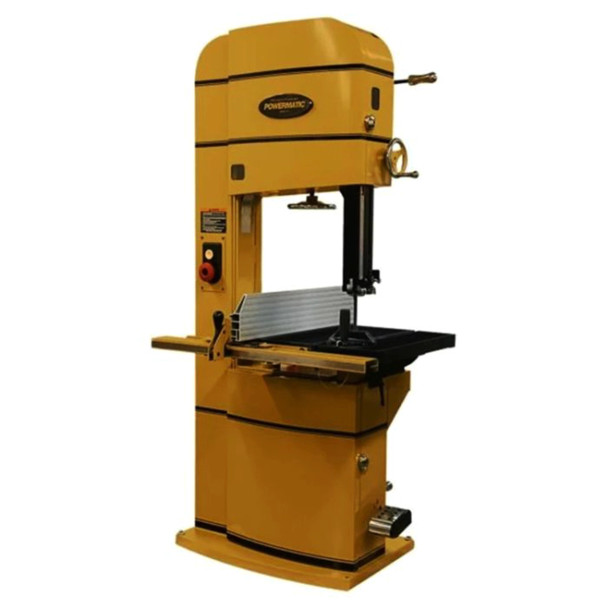

PM2013BT, 20-inch Woodworking Bandsaw with ArmorGlide, 5 HP, 1Ph 230V
The PM2013BT Bandsaw from Powermatic comes with a 5HP motor and operates on a single-phase 230V power. It boasts ArmorGlide Technology, providing a rust-resistant, low-maintenance work surface. Designed to empower woodworkers, this tool is ideal for handling larger projects with precision and ease.
Features
- ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust-resistant, requires less maintenance, and gives you more control
- Miter gauge is built with robust materials with many positive stops for the most commonly used angles
- Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is detensioned
- Exclusive Powermatic T-square style Accu-Fence® maximizes accuracy and safety
- Heavy-duty upper wheel support and tracking mechanism for smooth operation
- High-end blade guides with toolless adjustment provide stability, increasing cut accuracy
- Rack and pinion table tilt system allows for easy and accurate adjustments

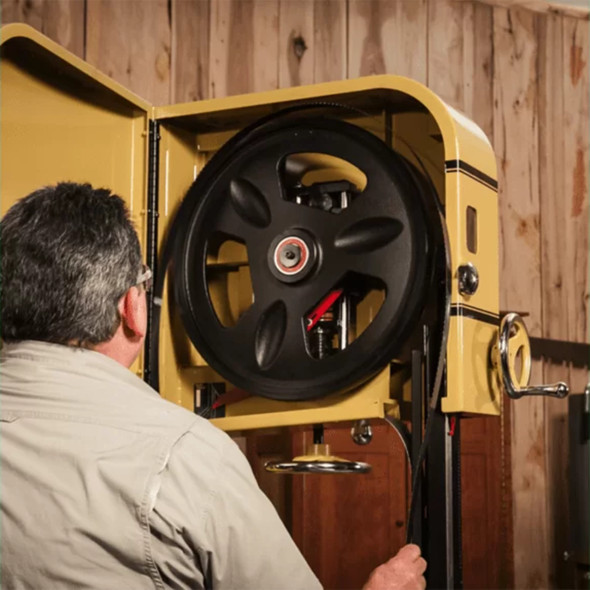

- Solid cast iron upper and lower wheels create the momentum needed for heavy resaw
- Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces
- Accu-Fence has complete adjustability for aligning to blade and squaring to table
Specifications
| Blade Length (In.) | 170 |
| Blade Speed (SFPM) | 2300/4400 |
| Cutting Capacity Height (In.) | 18 |
| Cutting Capacity Width (In.) | 20.0000 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Dust Port Outside Diameter (In.) | 4 |
| Minimum Saw Blade Width (In.) | 1/4 |
| Model Number | PM2013BT |
| Motor Power (HP) | 5 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Recommended Circuit Size (Amps.) | 30 |
| Style (Type) | Floor |
| Table Height from Floor (In.) | 36 |
| Table T-Slot (In.) | 3/4 |
| Table Tilt (Deg.) | 45 Right / 10 Left |
