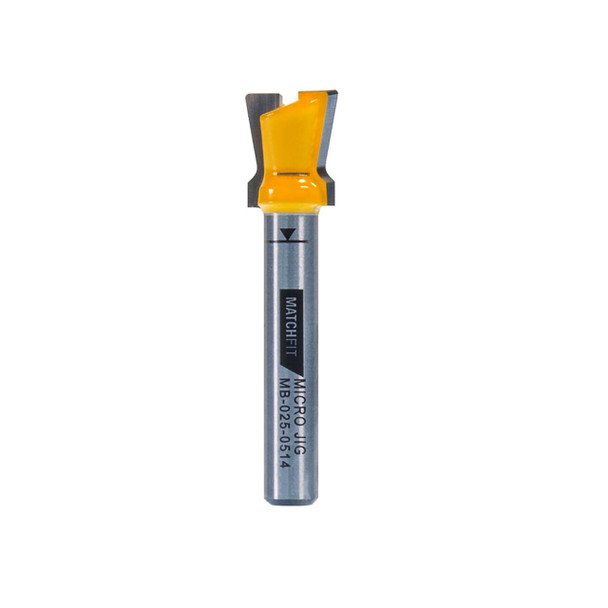

Matchfit Dovetail Router Bit 14° x 1/2 x 1/4 Shank

MicroJig MATCHFIT Dovetail Router Bit 1/4" Shank

Bottom of Form

The MATCHFIT 1/2" Dovetail Router Bit Shank is specially designed to route tracks for Dovetail Clamps and Dovetail Hardware. The Dovetail Bit's built-in round overs cut clean dovetail grooves in a single pass. Less time sanding, more time building. Its unique design uses the same standard 14°, 1/2” profile but with rounded corners. It routes incredibly clean Dovetail grooves and requires less sanding, making the matchfit system faster and easier.

The 1/32” round-over strengthens the bottom corner by removing less material. This is especially important when routing grooves in plywood, as it minimizes the possibility of the pieces separating.

The bit can be set to a depth anywhere between .365” and .385” and still be fully compatible with the match-fit line of products. Within that range, the width of the Groove opening at the top will remain the same but with a varying round-over exposure. The shallower the Groove, the smaller the roundover. The deeper the Groove, the more pronounced the round-over will be.

Features

• Rout incredibly clean dovetail grooves and require less sanding
• Perfect fit for the MATCHFIT Dovetail Clamp system
• Evacuate chips and dust, reducing friction and heat, resulting in cleaner cuts
• 14°, 1/2” profile with unique rounded corners for smoother grooves
• Router collet safety line shows how deep into the collet the bit should be

Includes

• 1/4" Shank Router Bit
