Axiom AR4 PRO V6 24" x 24" 220/3HP

(No reviews yet) Write a Review
SKU:
AXP400V6
MPN:
AR4PRO V6
Shipping:
$399.00 (Fixed Shipping Cost)
  • Axiom AR4 PRO V6 24" x 24" 220/3HP
  • Axiom AR4 PRO V6 24" x 24" 220/3HP
$7,999.00
Drop Shipped from Manufacturer

Description

Axiom AR4 PRO V6 24" x 24" 220/3HP

The new Axiom Precision AutoRoute ProV6 Series of CNC routers offers all of the great features you’ve come to know and love from our Pro series of machines but adds increased holding torque with 48V stepper motors, an improved cooling system, and higher spindle performance thanks to an upgraded VFD.

  • The new ProV6 also has a fresh new look.
  • These new Axiom CNC machines are now stronger, faster, and easier to maintain than ever before.

  • The updated ProV6 series offers 4-axis capability, powerful electro spindle performance, and rotary machining capability in a compact industrial machine.

  • Our ProV6 series CNC routers provide a full 6.5'' of gantry clearance and a quiet yet powerful 3HP electro-spindle with integrated liquid cooling system.

  • Each ProV6 series machine is also prewired to accept our optional Rotary Kit and the optional ALKV6-42 laser.

  • The Axiom AutoRoute ProV6 Series CNC routers also offer precision ball screws, prismatic guides, a robust steel frame, and interlocking aluminum table.

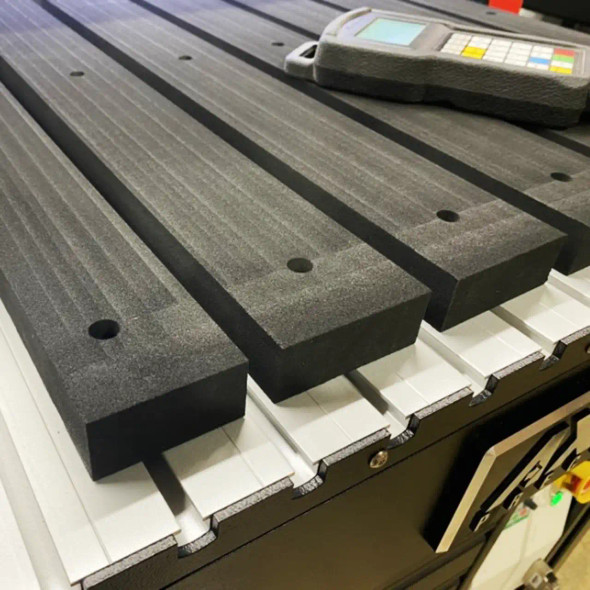

  • In addition, the integrated MDF spoil boards provide the exacting precision you need as they can easily be milled flat for a true perpendicular surface to the spindle.

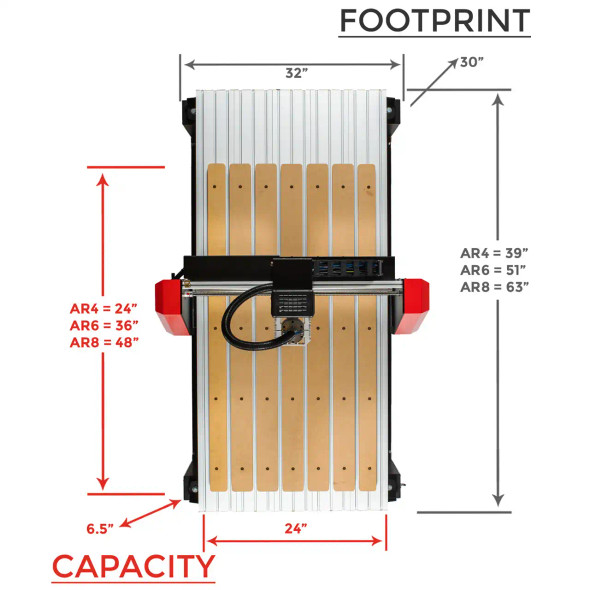

    Choose from three footprint options:

    • 24” x 24”,

    • 24” x 36”

    • 24” x 48”

There is no need to attach your CNC router to your computer to operate it. Simply transfer your file to the handheld controller via USB storage device. The handheld RichAuto B18 controller is a powerful, lightweight and easy to use controller with over a decade of proven results in demanding applications.

These machines ship directly to your shop for $399. (Residential & lift-gate delivery services included)

X axis travel

24" (610mm)

Y axis travel

AR4 = 24.1" (610mm)
AR6 = 35.82 (910mm)
AR8 = 47.63" (1210mm)

Z axis travel

5.9" (150mm)

C axis travel

360deg

Table work area

AR4 = 28.4" x 39"
AR6 = 28.4" x 51"
AR8 = 28.4" x 63"

Spindle Configuration

ER20

Included Collets

1/4" & 1/2"

Electro Spindle

2.2KW

Spindle speed

0~24000 RPM

Rapid shuttle speed

300 IPM (5 MPM)

Precision Linear Guideway

X/Y/Z

Precision Ball Screw

X/Y/Z

Ball Screw Diameter

16mm

Resolution

+/- .00393" (0.10mm)

Power requirements

220 V,50~60 Hz, 10A, 1-Phase

Working Table

High rigidity Aluminum Extrusion

Gantry bridge

High rigidity Aluminum Extrusion

Gantry Supports

Aluminum alloy gravity cast

Gantry Clearance (from table)

6.5" (165.1mm)

Gantry Clearance (from mdf spoil board)

5.5" (139.7mm)

Machine Base

All Welded Steel

Frame Machine Dimensions

AR4 = 39.17"L x 37.36"W x 30.27"H
AR6 = 51.18"L x 37.36"W x 30.27"H
AR8 = 62.99"L x 37.36"W x 30.27"H

Shipping Dimensions

AR4 = 42"L x 39"W x 33"H
AR6 = 53"L x 39"W x 33"H
AR8 = 65"L x 39"W x 33"H

Shipping Weight

AR4 = 320 lbs
AR6 = 360 lbs
AR8 = 405 lbs

Tool Touch-Off Device

Included

Onboard Cooling System

Included

Pre-wired for ALKV6-42 laser

Included

Controller

Richauto B18 DSP 4-Axis Controller
CNC motion control system
USB port for easy file transfer.

Language

Support English / Chinese
