Freud 3/4" Dovetail Bit
- SKU:
- 22-114
- UPC:
- 008925383031
- Shipping:
- Calculated at Checkout
Description
Strong, attractive joints for drawers and boxes
Technical Specifications
| Angle (D) | 7° |
| Number of Cutters | 2 |
| Overall Diameter (D) | 3/4" |
| Overall Length (H) | 2-5/8" |
| Shank Diameter (A) | 1/2" |
| Carbide Height (H) | 7/8" |
| Max RPM | 24000 |
Dovetail joints are the traditional choice for strong, attractive joints for drawers, boxes and exposed furniture joints. Freud's large selection of dovetail bits are compatible with popular dovetail jigs. Ideal for routing hardwood, softwood, plywood and most composite materials, these bits produce smooth, intricate joints. Use in CNC, hand-held or table-mounted routers.
- Freud Perma-SHIELD® Coating
- Bits are compatible with many popular jigs
- Use in CNC, hand-held and table-mounted routers
Ideal For: Strong joints in wood drawers and boxes
Related Products
Sku: 22-115
Freud 17/32" Dovetail Bit
$29.97
Strong, attractive joints for drawers and boxes
Dovetail joints are the traditional choice for strong, attractive joints for drawers, boxes and exposed furniture joints. Freud's large selection of...
Sku: FB-005
Freud Diablo 3/4" Forstner Bit
$10.97
Requires minimum chuck size of 3/8"
Drills straight, angled and overlapping 3/4" holes in all types of wood without splintering
Forged, hardened steel construction for a long life and a sharp...
Sku: 22-134

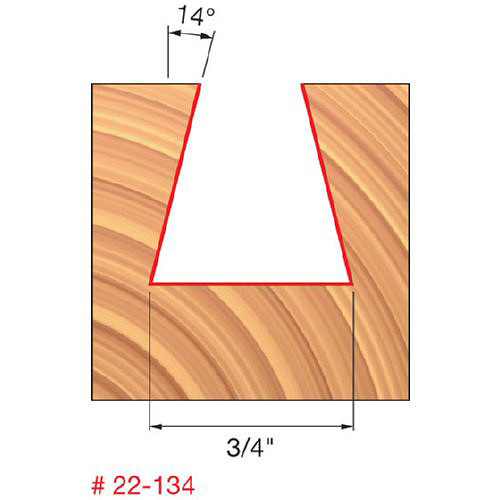

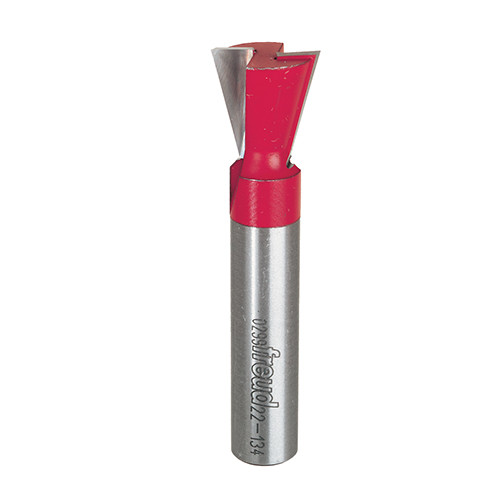

Freud 3/4" Dovetail Router Bit, 14 Deg. Angle, 3/4" Carbide Height, 1/2" Shank, 3/4" Overall Diameter, 3-1/8" Overall
