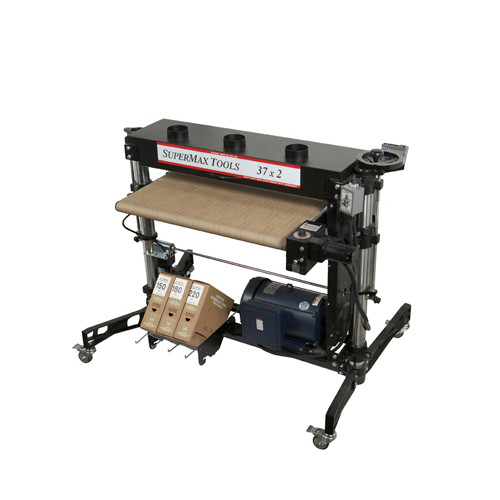

Supermax 37X2 1PH W/ Caster Set

Shown with optional accessories(Casters, In/Out Tables and Abrasive Rack - not included)

Does not ship with cord or plug.

INTELLISAND TECHNOLOGY

• Eliminates the guess-work of manually controlling the infinitely-variable feed speed
• Simplifies the sanding operation
• Provides a consistent finish even with varying grain pattern and density
• Greatly increases abrasive planing and dimensioning speed
• Maintains highest possible feed rate without overload
• Standard on all 220 Volt Series drum sander models

37x2

• Continuous-duty 5HP motor, 208- 230 Volt power, single or 3 Phase
• INTELLISAND automatic control of the infinite-variable feed rate (0-15 ft./min.) for the conveyor gives a perfect finish
• Multiple grit sanding in single pass with double drum models
• Precisely dimension stock within .010 across width of sander
• 25 wide sanding capacity
• Height of the rear drum is independently adjustable in relationship to the front drum
• Optional ProScale depth gauge allows incredible accuracy
• Precision-flattened steel conveyor bed reinforced with four steel cross sections for no flex
• Self-cooling drum with abrasive
• Take- Up-Fasteners make changing abrasive quick and easy plus keeping abrasives tight
• 6" Thickness capacity on the 25" and 12" on the 37" and 50"
• Sand as thin as 1/32 and as short as 2-1/4 (single drum) 3-1/2 (double drum) models
• Cast stand, zinc-plated steel bed, centerless ground column tubes
• Dust Collection- mandatory for all models: 25 - 600 CFM min.
• Shipped assembled, some minimal assembly required
• Drum ball bearings are sealed and permanently lubricated

Specifications:

• Drum(s): Extruded aluminum
• Drum Speed: 1600 RPM
• Dust Hood: Hinged back steel with one 4" vacuum port
• Height Adjustment (in): 3/32 per turn, Depth Gauge with locking stop
• Ball Bearings 1" - 2 per drum (2 or 4)
• Conveyor Motor: INTELLISAND TECHNOLOGY controlled 100 in.-lb. torque, direct drive D.C. motor, Infinitely variable 0-15 feet per minute
• Drive Motor (TEFC): 5 HP, 1740 RPM;208-230V, 60HZ;continuous-duty
• Power Requirements: 1 Ph, 30 amp service
• Includes casters
