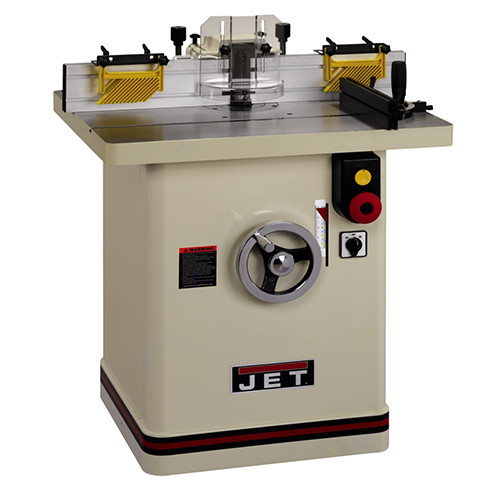

JET JWS-35X5-1 5HP 1PH Shaper

• Four-speeds 4000, 6000, 8000, 10000 RPM let you select the best speed and torque for different cutter diameters
• Powerful 5HP, 1Ph motor with magnetic controls
• Independently adjustable left and right fences, standard with a micro adjust control for precise positioning
• Large 26-3/4" X 32-1/4" precision ground cast iron table provides a durable work area, predrilled for power feeder
• Poly-V-belt transfers maximum power to the spindle
• Starting Pins for irregular shaping
• Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
• Extra-large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
• Reversible spindle speeds for diverse shaping jobs
• 4" Dust port built into fence for convenient hookup to any dust collection system
• Spindle lock for safe and easy cutter set-up
• Spindle height scale

Specifications:

• Model #: JWS-35X5-1
• Brand: Jet
• Warranty: 5 Year
• Spindle Speed (RPM): 4000, 6000, 8000, 10000
• Reversable: Yes
• Spindle Diameter (in.): 3/4"
• Spindle Size Under Nut (in.): 4"
• Spindle Travel (in.): 4"
• Table Size (in.): 26-3/4" X 32-1/4"
• Table T-Slot : Yes
• Table Opening Diameter (in.): 7-1/4"
• Table Insert Opening Diameter (in.): 2-5/8", 4-7/8"
• Fence Size (L x H/in.): 4-3/4" X 16"
• Router Bit Collet Diameter (in.): 1/4", 1/2" (optional)
• Table Height From Floor (in.): 33-1/4"
• Electrical Controls - Magnetic Starter: Magnetic Starter
• Maximum Diameter Cutter Below Table (in.): 6"
• Maximum Diameter Cutter Above Table (in.): 7-1/2"
• Table Inserts: 2
• Fence Travel (Major and Minor/in.): 4", 1"
• Dust Port Diameter (OD/in.): 4"
• Dust Collection Minimum CFM Required: 400
• Motor HP: 5
• Motor Phase: 1
