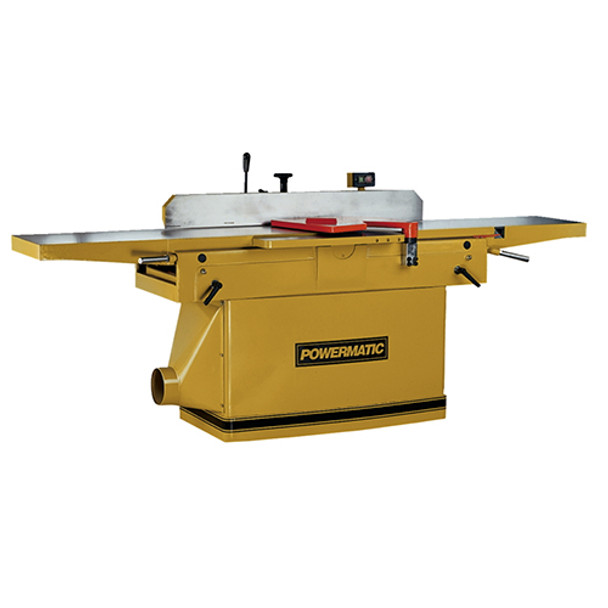

PJ1696 16" 7.5HP 3PH Jointer w/ Helical

This 16" jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily on a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. The specially designed solid steel helical cutterhead consists of six rows of precision ground staggered inserts. This system makes fast work of knife changing and never needs adjustment. The heavy-duty 7-1/2HP motor delivers all the power you need for even the biggest jobs.

Details:

• Helical cutterhead with 2-sided knife inserts reduces noise, eliminates adjustments and speeds knife changes
• Parallelogram construction maintains close table-to-cutterhead proximity and ensures table parallelism
• Segmented infeed roller with sectional chipbreaker allows multiple board planing
• Large 96" x 16" table surface for maximum support and fine finish
• Rack and pinion adjustable cast iron fence system for smoother fence positioning and sturdy work support
• Full size rabbeting table supports large workpieces for rabbets up to 3/4" deep
• 7.5HP Motor for industrial duty

Standard Equipment:

• Helical cutterhead with inserts
• Tilting fence
• Dust collection adaptor
• Cutterhead guard
• Tool kit

Specifications:

• Part Number: 1791283
• Warranty: 1 Year
• Cutting Capacity (W x D): 16 x 3/4"
• Cutterhead Speed: 5200 RPM
• Cuts Per Minute: 20800
• Cutterhead Diameter: 4"
• Number of Knives (Helical/Standard): 58 two-sided inserts (includes 2 rabbeting)
• Standard Knife Size (L x W x T): 30 x 12 x 2 mm
• Rabbeting Capacity: 3/4"
• Rabbeting Ledge: 5 x 24 1/2"
• Table Height: 37-1/2"
• Table Size (L x W): 96 x 16"
• Infeed Table Length: 47-1/2"
• Outfeed Table Length: 47-1/4"
• Fence Size (L x H): 47-1/4 x 5-1/4"
• Fence Tilts: 45° in/out
• Fence Positive Stops: -45°, 45° and 90°
• Dust Port Outside Diameter: 6"
• Dust Collection Minimum CFM Required: 800 cu.ft/min
• Motor Power: 7-1/2 HP
• Motor Phase: 3 Ph
• Motor Voltage: 230 / 460 V
• Prewired Voltage: 230 V
• Model Number: PJ1696
• Brand: Powermatic
• Overall Dimensions: 96 x 46 x 43
• Height: 43 inch
• Width: 46 inch
• Length: 96 inch
• Net Weight: 1280 pound
